How do a girl like me connect power like a pro?
Well, first of all you need to understand that it's mot as hard as you imagine. I will try to show the easy steps that made me see the simple way.
Components You Need:
- Solar Panels
- Charge Controller
- Battery
- Inverter (optional, if you need AC output)
- Cables and Connectors
Steps to Set Up:
-
Mount the Solar Panel:
- Install the solar panel on the roof of your campervan, ensuring it is securely fastened and oriented to receive maximum sunlight.
-
Connect Solar Panel to Charge Controller:
- Use MC4 connectors to connect the positive (+) and negative (-) wires from the solar panel to the corresponding inputs on the charge controller. Ensure the connections are secure and insulated.
-
Install the Charge Controller:
- Mount the charge controller in a convenient location inside the campervan, preferably close to the battery.
-
Wire the Charge Controller to the Battery:
- Connect the positive (+) and negative (-) terminals of the charge controller to the corresponding terminals on the 12V deep cycle battery using 12 AWG wires. Install fuses on both the positive and negative wires to protect against overcurrent.
-
Connect the Battery to the Power Inverter:
- Use appropriate AWG wires (usually ≥4 AWG) to connect the positive (+) and negative (-) terminals of the battery to the corresponding terminals on the 12V power inverter. Install high amperage fuses on both wires to protect the system.
-
Test the System:
- Once all connections are made, check each connection to ensure it is secure. Turn on the system and monitor the charge controller for proper operation. The charge controller should indicate the battery is charging from the solar panel.
-

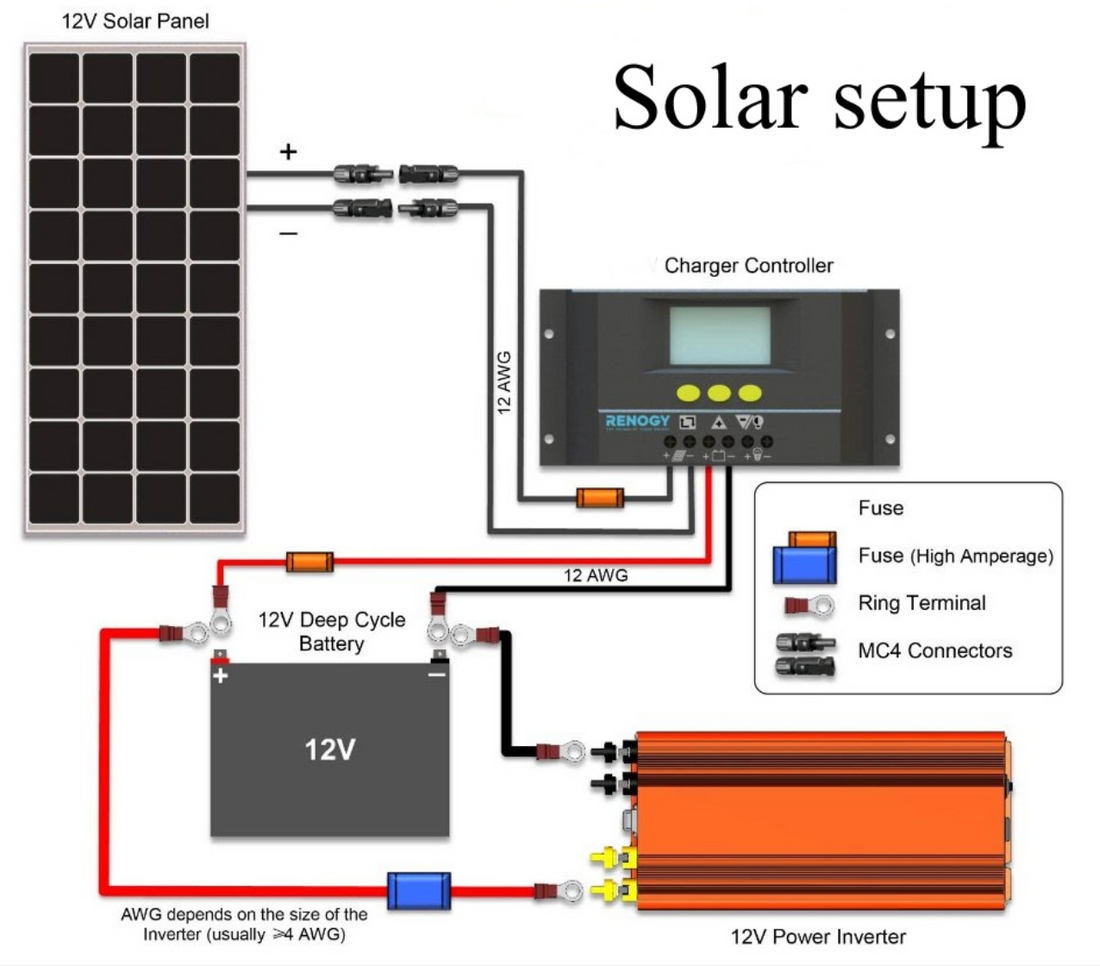

Setting up a solar panel system in your campervan involves several key components and steps. Here's a brief guide based on the provided diagram:
Components Needed:
- 12V Solar Panel
- Solar Charge Controller
- 12V Deep Cycle Battery
- 12V Power Inverter
- Fuses
- Ring Terminals
- MC4 Connectors
- Wires (12 AWG and other appropriate sizes)
Steps to Set Up:
-
Mount the Solar Panel:
- Install the solar panel on the roof of your campervan, ensuring it is securely fastened and oriented to receive maximum sunlight.
-
Connect Solar Panel to Charge Controller:
- Use MC4 connectors to connect the positive (+) and negative (-) wires from the solar panel to the corresponding inputs on the charge controller. Ensure the connections are secure and insulated.
-
Install the Charge Controller:
- Mount the charge controller in a convenient location inside the campervan, preferably close to the battery.
-
Wire the Charge Controller to the Battery:
- Connect the positive (+) and negative (-) terminals of the charge controller to the corresponding terminals on the 12V deep cycle battery using 12 AWG wires. Install fuses on both the positive and negative wires to protect against overcurrent.
-
Connect the Battery to the Power Inverter:
- Use appropriate AWG wires (usually ≥4 AWG) to connect the positive (+) and negative (-) terminals of the battery to the corresponding terminals on the 12V power inverter. Install high amperage fuses on both wires to protect the system.
-
Test the System:
- Once all connections are made, check each connection to ensure it is secure. Turn on the system and monitor the charge controller for proper operation. The charge controller should indicate the battery is charging from the solar panel.
Safety Tips:
- Ensure all components are rated for 12V systems.
- Double-check all connections for proper polarity.
- Use appropriate fuses to protect against overcurrent.
- Follow manufacturer instructions for each component.
This setup will allow your campervan to utilize solar power, ensuring you have a sustainable and reliable power source while on the road.
Its not so hard if you just take it step by step;)
